Elastomeric Alloy Wire
Your Trusted Source for Precision Alloy Manufacturing
Elastomeric alloys are a unique material that combines the elasticity of rubber with the durability and strength of traditional metals or rigid polymers. These materials, also known as thermoplastic elastomers (TPE) or elastomeric composites, offer flexibility, resilience, and adaptability across various applications.
Available grades: 3J01, 3.21, 3J53
-
Plate / Sheet
- Thickness: 0.1mm-5.0mm
- Width: 50mm-1000mm
- Length: 500mm-3000mm
-

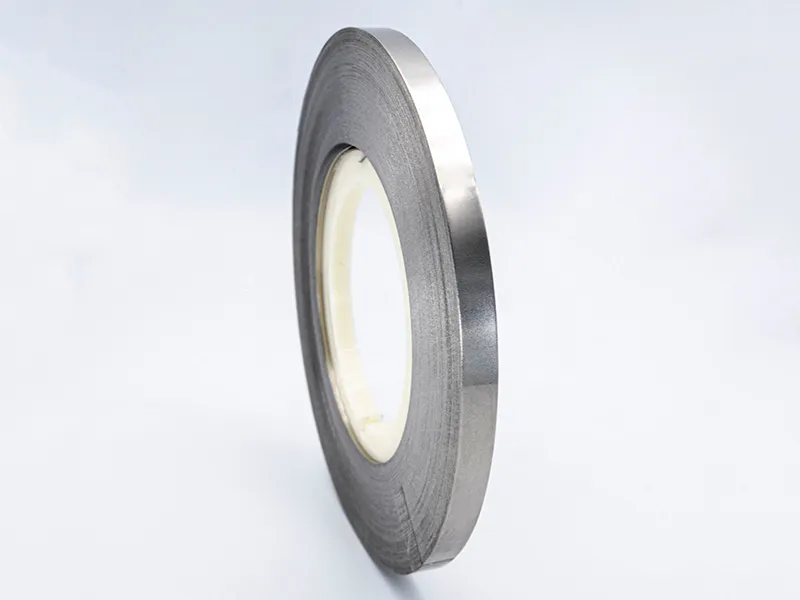

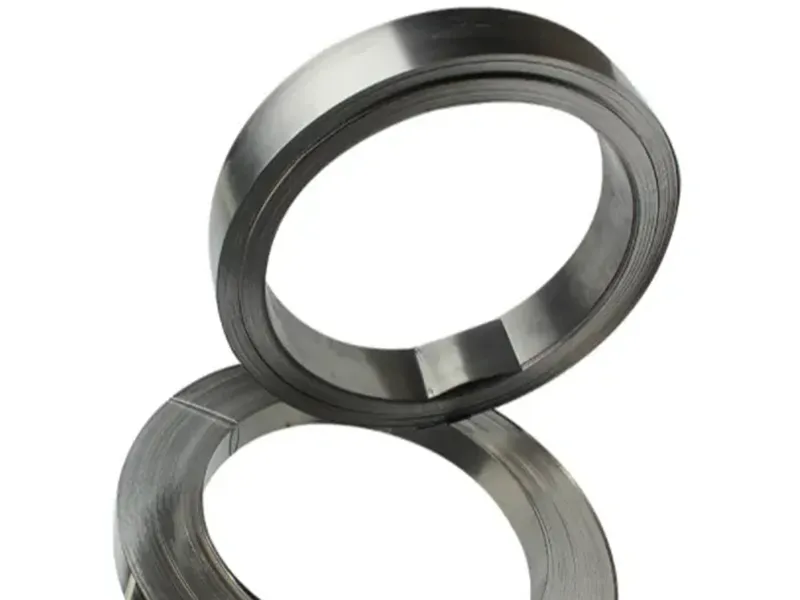

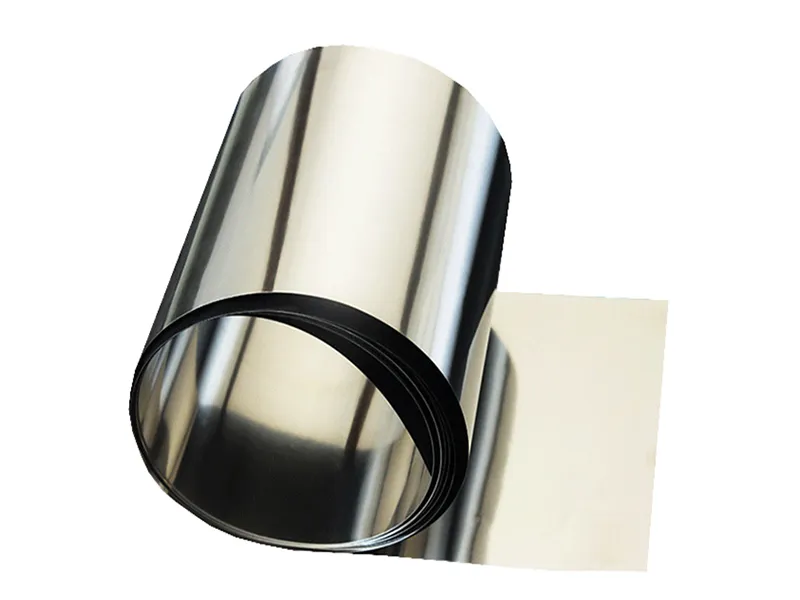

Strip
- Thickness: 0.02mm-1.5mm
- Width: 3mm-500mm
- Delivery Forms: Bright shiny, cold rolled or hot rolled
-

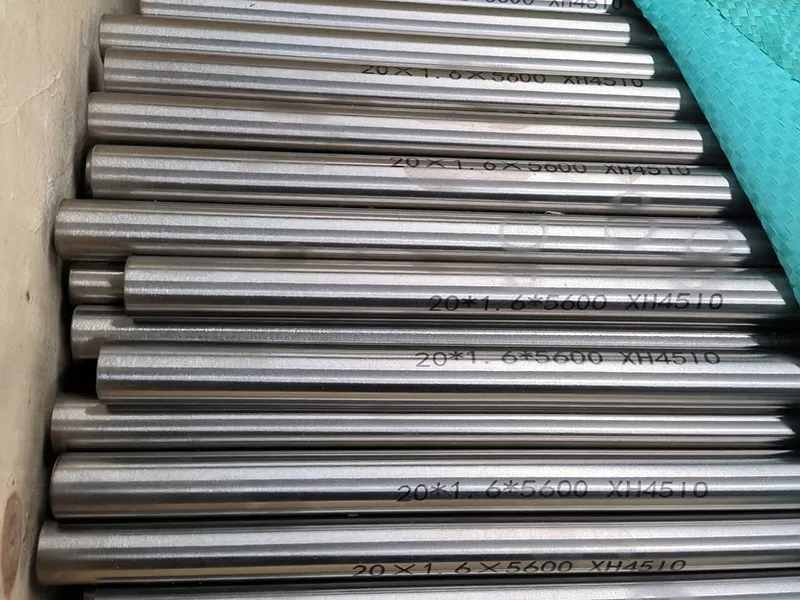

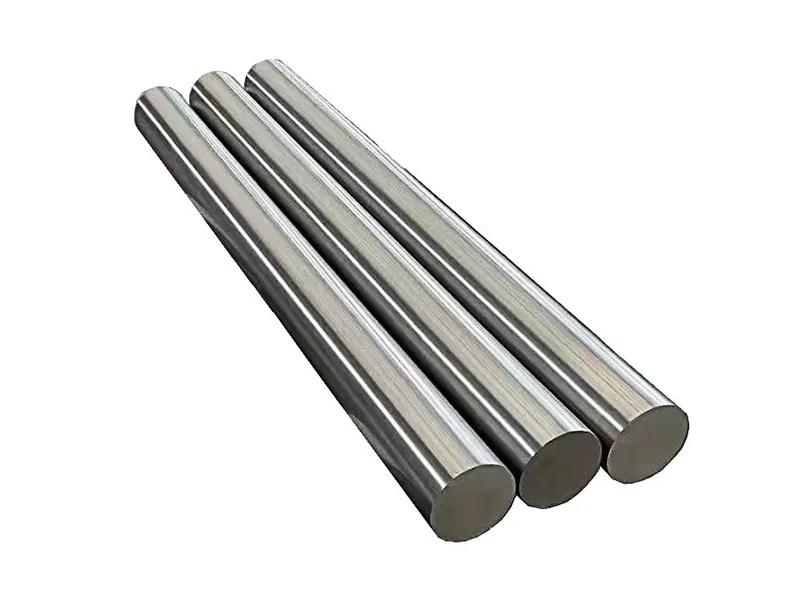

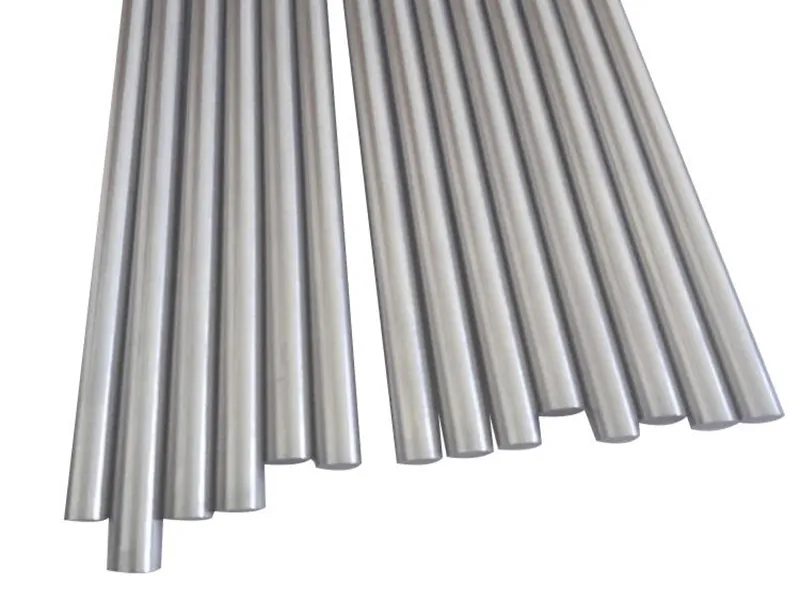

Rod
- Diameter: Ø5mm-Ø80mm
- Length: 100mm-2000mm
-

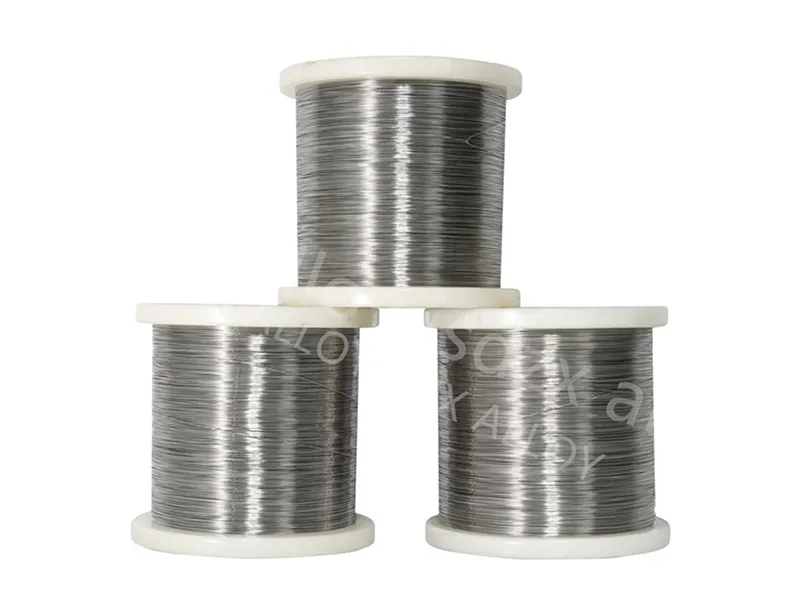

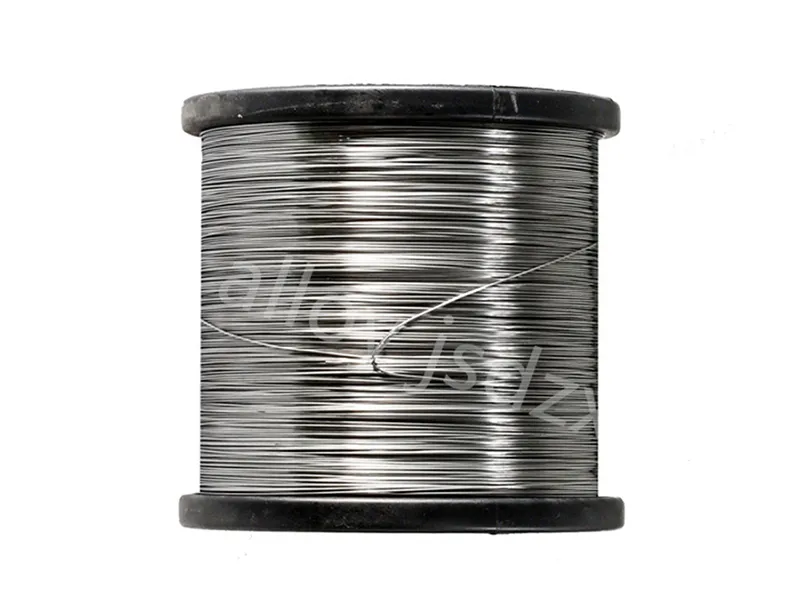

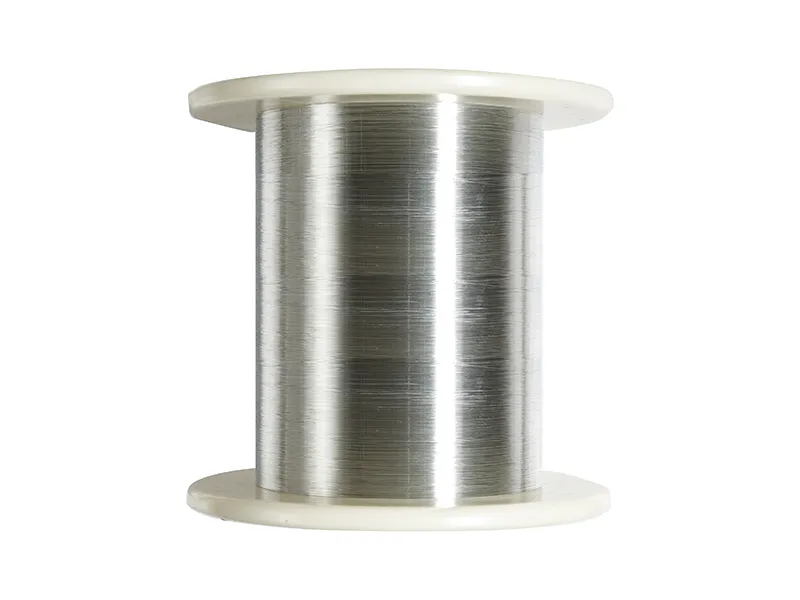

Wire
- Diameter: Ø0.03mm-Ø5mm
- Delivery Forms: Bright shiny, supplied in spools
-

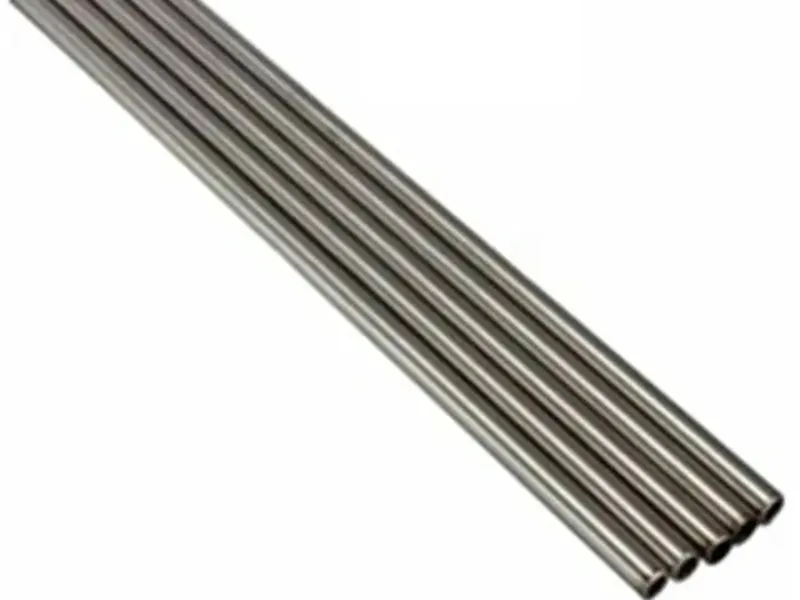

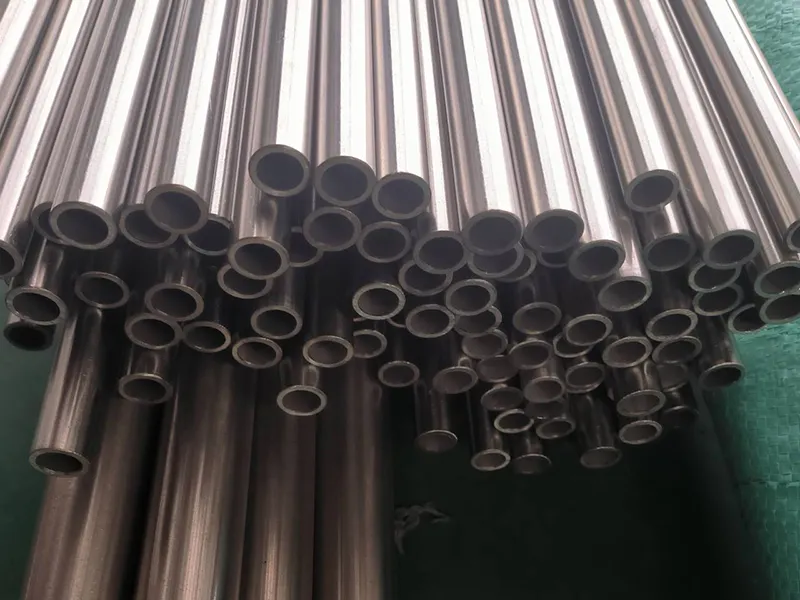

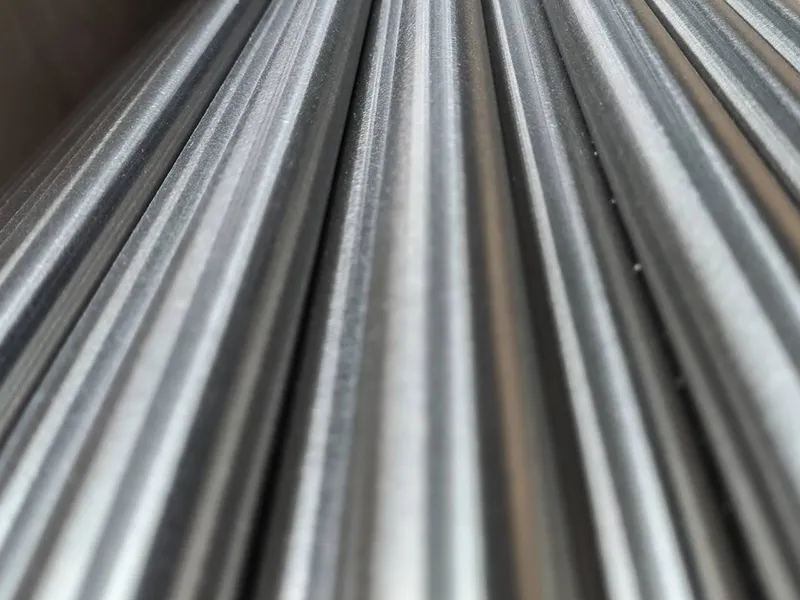

Tube
- Outer Diameter: Ø3mm-Ø100mm
- Wall Thickness: 0.5mm-10mm
- Length: 100mm-6000mm
Physical & Mechanical Properties
| Grades | Density (g/cm³) | Electrical Resistivity (10⁻⁶ Ω·cm) | Thermal Conductivity (W/m·K) | Modulus of Elasticity (GPa) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation at Break (%) | Elastic Limit (MPa) | Fatigue Life (cycles) | Working Temperature Range (°C) | Temperature Coefficient |
| |
8.1 | 80 | 11 | 144 | 800 | 1000 | 10 | 800 | >10⁷ | -60 to 200 | Extremely low temperature coefficient of elasticity |
| |
8.3 | 120 | 40 | 125 | 300 | 600 | 20 | 300 | >10⁷ | -40 to 150 | Elasticity remains constant with minimal temperature sensitivity |
| |
8.2 | 100 | 15 | 180 | 1100 | 1400 | 5 | 1100 | >10⁶ | -200 to 500 | Maintains high strength even at elevated temperatures |
Features
- Ability to revert to its preset original shape upon heating
- Can withstand significant deformation within a certain temperature range without permanent change
- Capable of storing and releasing large amounts of mechanical energy
- Lighter than traditional materials, yet just as strong
- Particularly suitable for medical implants
Applications
- Aerospace: Expandable antennas, solar panel hinges, and more
- Automotive: Airbag trigger mechanisms, seat adjustment systems, etc.
- Medical equipment: Vascular stents, neurostimulators, and more
- Consumer electronics: Flexible components in wearable devices
Packaging
Why Choose DLX Alloy?
-
- Raw material purity is verified through spectrographic analysis, and key production processes are monitored in real time.
- Finished products undergo 100% inspection, with a pass rate of over 99%.
- Products comply with applicable standards, including ASTM and GB, and have obtained ISO, TÜV, CE, RoHS, and other certifications.
Strict Quality Control -
Reliable DeliverySmall-batch orders are delivered within 10–30 days, while large-volume orders usually take around 60 days, helping ensure on-time delivery.
-
- With over 20 years of industry experience, DLX Alloy provides customized alloy solutions, adjusting material specifications and chemical compositions according to customer requirements and offering professional technical support.
- Standard and custom are available for fast prototyping, with standard samples ready in 7–10 days.
- Sample testing supports small-batch testing and validation, helping customers verify material performance through actual test data and reduce trial-and-error costs during R&D.
